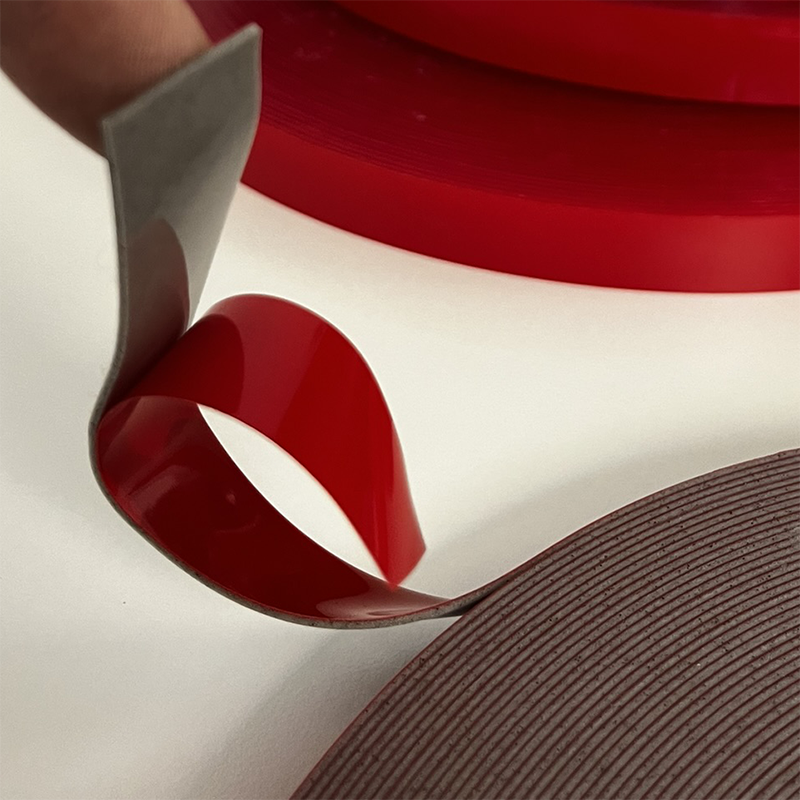

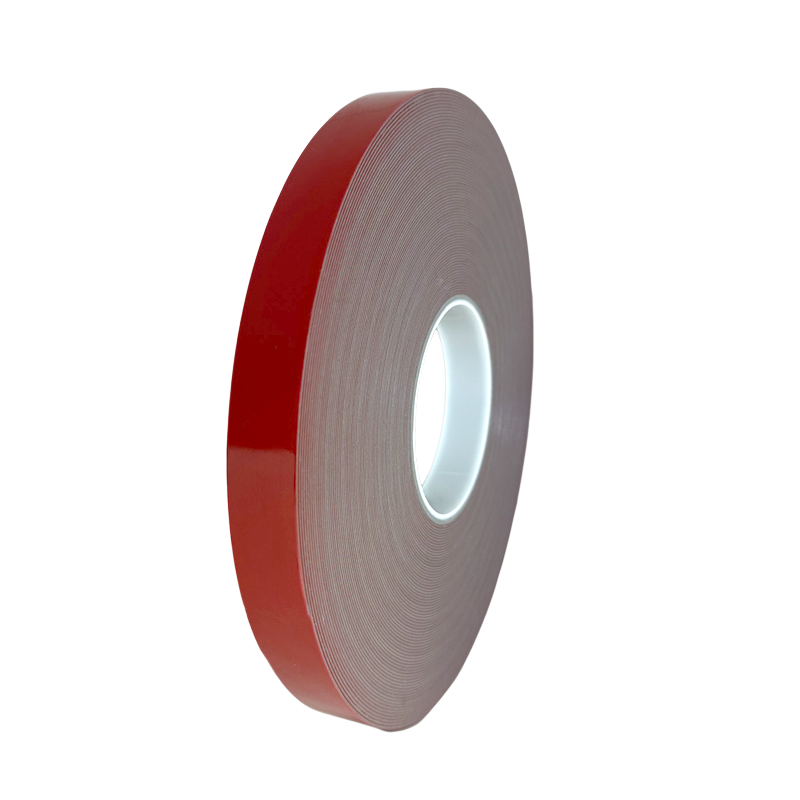

volzAcrylicFoam 76080-55 PV1 is a high performance, double-sided adhesive tape consisting of an acrylic adhesive coated on a firm acrylic foam carrier. This product was developed for use in the automotive industry, the electrical industry and many other areas of application and offers excellent adhesion to a wide variety of surfaces. The tape is also characterized by its high temperature resistance.
Applications
- Metal, glass, high surface energy plastics
- Automotive
- Construction
Benefits
- Excellent holding power and temperature resistance
- Can withstand extreme weights and heat
- Superb adhesion
- Good UV and chemical resistance
Storage Conditions
The Rolls should be stored in their packaging protected from light and at a temperature between 21°C to 30°C, with a relative humidity of 50%. When using an adhesive tape stored below 21°C, it is advisable to keep the tape at room temperature for 24 hours to preserve its characteristics.
| Manufacturer | VOLZ® |
|---|---|
| Backing | Acrylic Foam |
| Adhesive Type | Acrylic additionally coated on firm acrylic foam |
| Total Thickness | 0,80 mm (± 10%) |
| Color | Grey (55) |
| Liner | red PE Film |
| Adhesion to Steel | 49,03 N/25 mm |
| Shear Strength | 8 kgf/cm² |
| Static Shear | 3,23 cm² /168 h: 1500 g (23°C), 750 g (93°C) |
| Temperature Resistance | +150°C (short-term), '+93°C (long-term) |
| Length | 33 m, other lengths upon request |
| Width | 4 mm – 930 mm, other widths upon request |
| Storage Life | The material can be stored at room temperature for at least 12 months. |
| Slitting Tolerance | Length < 33m = ± 0,4mm (± 1/64"), Length > 33m = ± 0,8mm (± 1/32"), Lower tolerances on inquiry and perhaps against extra charge possible, Cross-wound spools are not similar to the above mentioned tolerances |
Benefits
- Excellent holding power and temperature resistance
- Can withstand extreme weights and heat
- Superb adhesion
- Good UV and chemical resistance
Application Instructions
- Make sure that the surfaces to be bonded are absolutely clean and free of dust and grease
- The best cleaning agent is a solvent such as isopropanol, which is applied with a clean cloth
- For optimum adhesion, apply sufficient pressure to the surface. A typical pressure value for good adhesive wetting is 100 kPa = 15PSI
- The adhesive is pressure sensitive. The best results are achieved with maximum surface contact under pressure
- After 20 minutes 50% of the bond strength is achieved, after 24 hours 90% of the optimum bond strength is achieved, and finally 100% after 72 hours
- Avoid heavy stress on the bonded area immediately after application
- Recommended temperature range for application: +21°C to +35°C
- The temperature should not be below +10°C during application
- Certain surfaces, such as porous materials like plaster and concrete, but also absorbent surfaces like untreated wood and fabric, must be pre-treated or sealed before application
- Metals with oxidized surfaces such as aluminum, copper and brass must be pre-treated or sanded before application
- Materials with low surface energy such as polypropylene, which contain aggressive plasticizers, may also need to be pre-treated
