Applications
- Label Dispenser
- Die-cut tape dispenser
Benefits
- Available in three different sizes
- Integrated label recognition
- Dispenses very quickly and easily
- Built-in digital counter
- Two counting functions: total number of pieces, and count-down of the programmed number of pieces
- Compact design

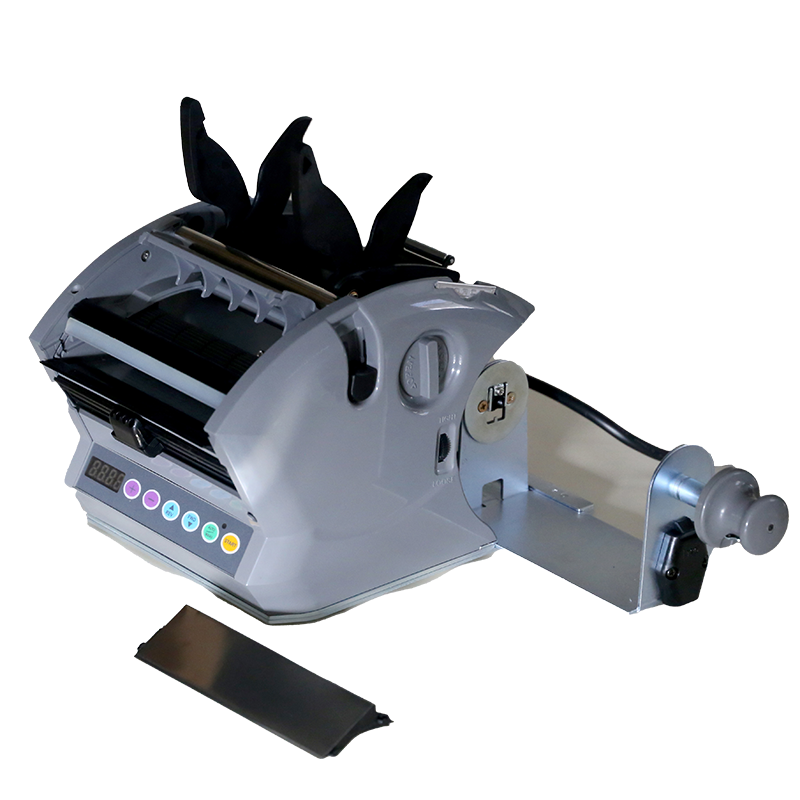

volzDispenser 161-0624-60/120/180 dispenses all common and special adhesive labels quickly and easily. Scanning is photo-electric. The dispensing speed and the label feed are infinitely variable. The built-in counter displays how many labels have been dispensed.
| Manufacturer | VOLZ® |
|---|---|
| Length Calibration | Control Panel, continuously variable |
| Power Consumption | 161-0624-60: 40 W, 161-0624-120: 45 W, 161-0624-180: 50 W |
| Tape Width | 161-0624-60: 15 mm – 60 mm, 161-0624-120: 15 mm – 120 mm, 161-0624-180: 15 mm – 180 mm |
| Tape Length | 10 mm – 999 mm |
| Max. Roll Diameter | 161-0624-60: 200 mm, 161-0624-120: 250 mm, 161-0624-180: 300mm |
| Type of Rolls | Label Rolls, Die-Cut Rolls |
| Required Space (LxWxH) | 161-0624-60: 215 mm x 104 mm x 140 mm, 161-0624-120: 231 mm x 164 mm x 157mm, 161-0624-180: 241 mm x 224 mm x 157 mm |
| Weight | 161-0624-60: 2,10 kg, 161-0624-120: 3030 kg, 161-0624-180: 4,60 kg |
| Mode | Automatic |
| Type | Label / Die-Cut Dispenser |
| Additional Info | Dispensing speed 100-220mm / sec (6 levels programmable) |
Benefits
- Available in three different sizes
- Integrated label recognition
- Dispenses very quickly and easily
- Built-in digital counter
- Two counting functions: total number of pieces, and count-down of the programmed number of pieces
- Compact design
